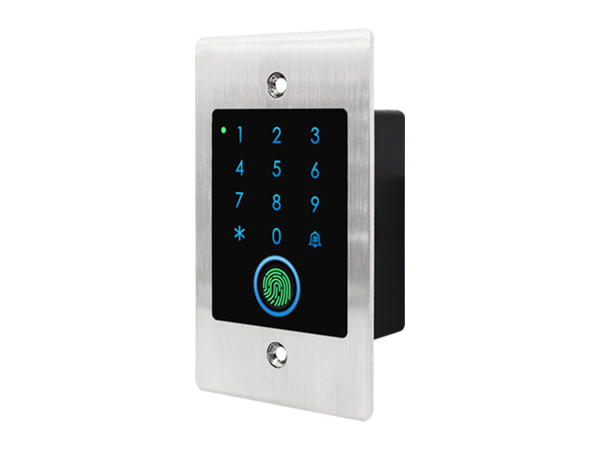

           EF201

Embedded Access Controller

> Capacitive Fingerprint Sensor,touch keypad

> Embedded design, IP67 waterproof

Stanless steel plate, anti-vandal

Card type:  EM Card or EM+Mifare Card

iOS and Android available

Add / Delete users by APP

> Can set Time Restriction for users

> Temporary Password (One-time Or Period Code)

> Support checking Opening Record

> Remotely Access (Support 3G/4G/5G)

> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN

> Doorbell Call Notice






The EF201 is an embedded waterproof touch keypad + fingerprint + RFID access controller. It has a large user capacity with 10,500 local users (including fingerprint / card / PIN users). The Tuya WiFi version supports 500 mobile users and is available for both iOS and Android


User Capacity

 Common User
 Visitor User
 Panic User

Hardware User: 10,000          APP User: 500

9988  PIN/Card, 500 Fingerprint

10
2

PIN Length4~6 digits

Operating Voltage

 Idle Current
 Active Current

12~18V DC

 ≤ 60mA
≤ 150mA

Proximity Card Reader
 Radio Technlogy
 Read Range
EM or EM+Mifare
125KHz/13.56MHz
2~6cm
Wiring ConnectionsRelay output, exit button, alarm, door contact, Wiegand input/output

Relay

Adjustable Relay Output Time

Lock Output Load

One (NO, NC, Common)

0~99 Seconds (5 seconds default)

2 Amp Maximum

Wiegand Interface


PIN Output

EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits)

Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)

4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)

Environment

Operating Temperature

Operating Humidity

Meets IP67

-30°C ~ 60°C (-22°F ~ 140°F)

0%RH ~ 98%RH

Physical

Color

Dimensions

Unit Weight

Shipping Weight

Stainless steel

Sliver&Black

L115 x W70 x H25 (mm)

240g

270g



















240
