                D300-Ble

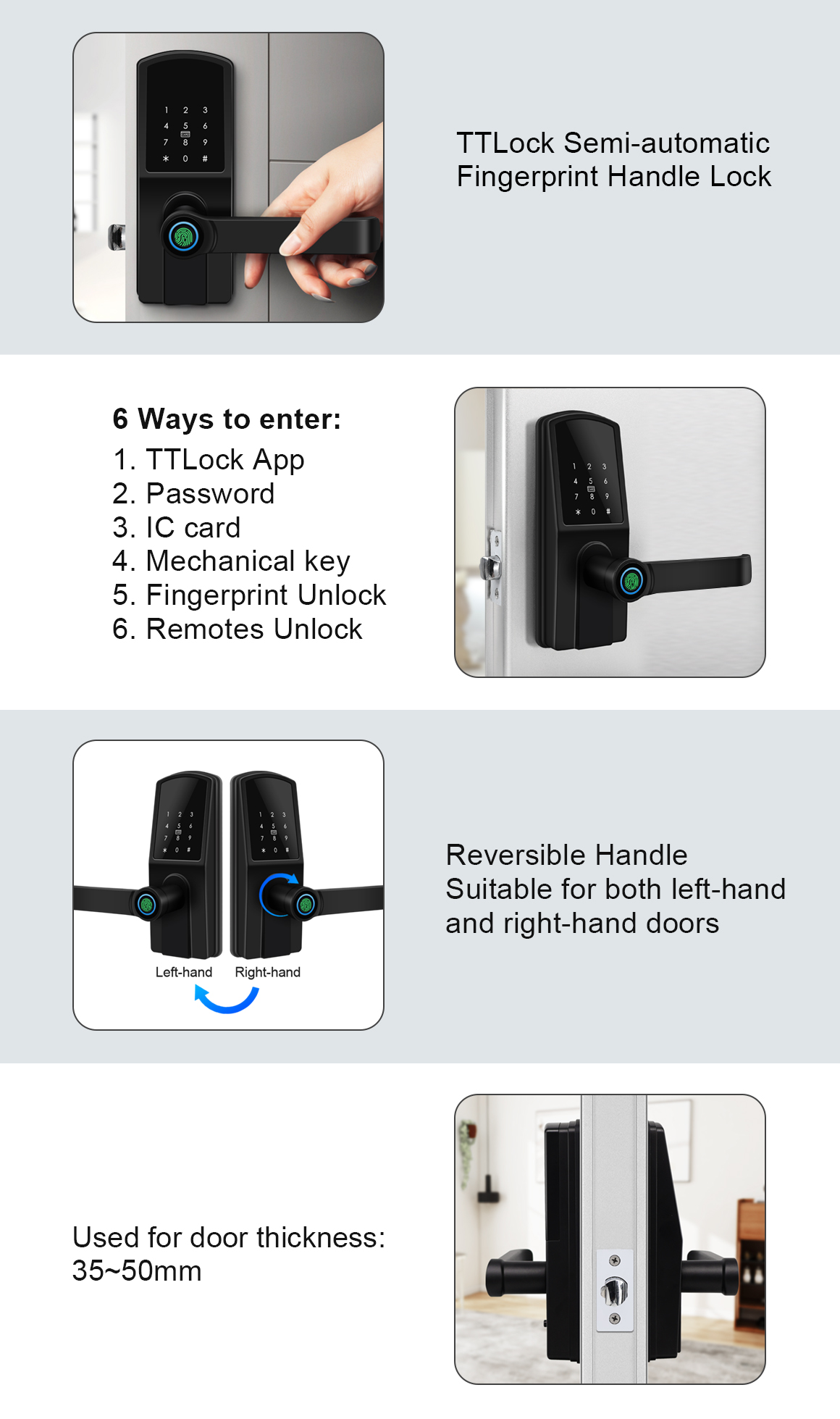

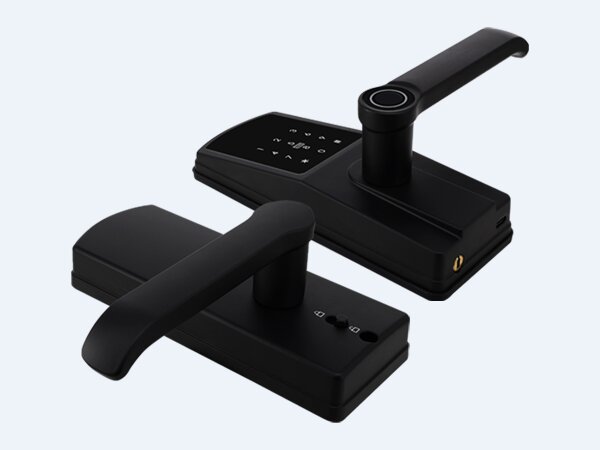

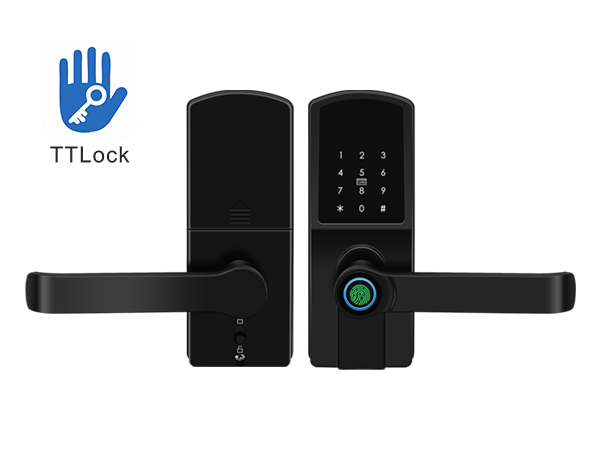

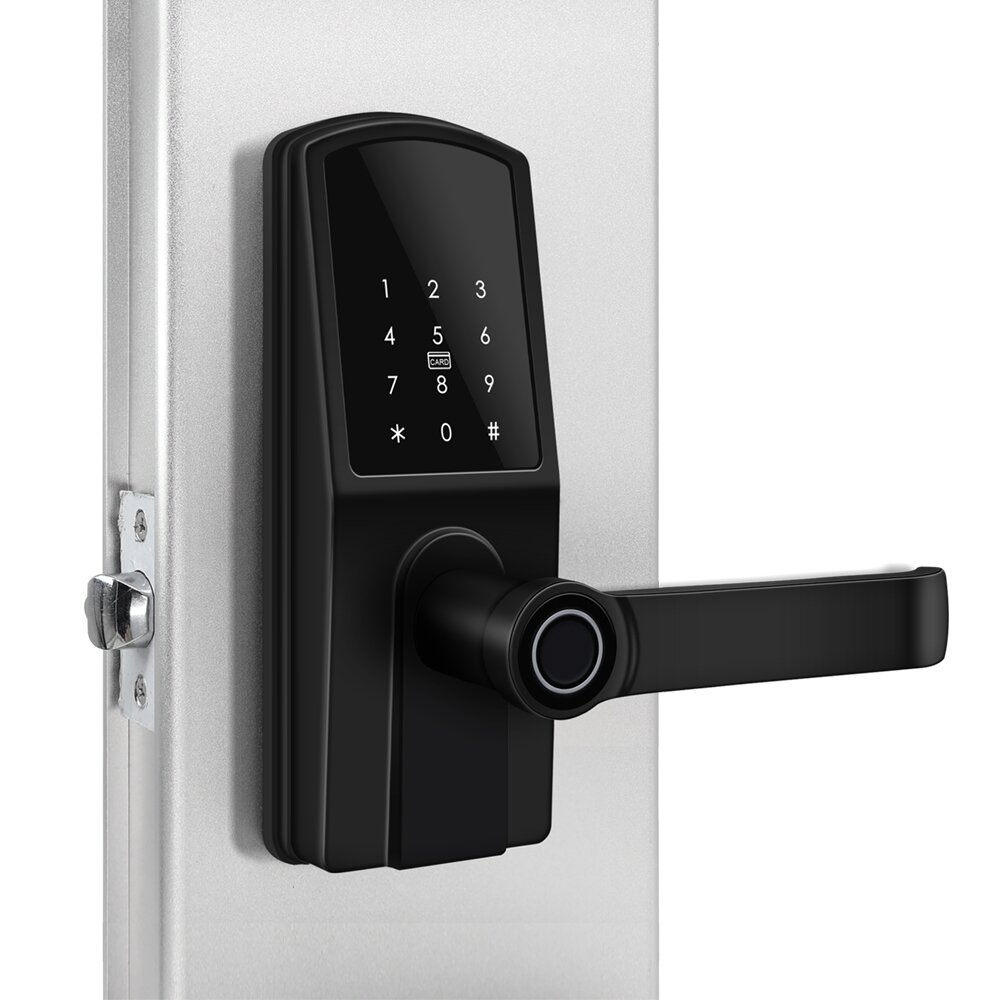

       TTlock Semi-automatic Fingerprint Handle Lock

       > Metal Case,Anti-vandal

       > Work with TTLock APP, add/delete Users via App

           > Work with 13.56MHz Mifare card, M1 card

           > Door Thickness:35-50mm

           > Support Checking Opening Record

           > Work with AA batteries, Emergency USB charging

           > Mechanical key for emergency door opening

           > Multiple Access Modes: Smartphone, Card, PIN, Fingerprint, Mechanical key


The device is an smart semi-automatic fingerprint handle lock which supports 1000 cards, 250 permanent PINs and custom PINs, unlimited temporary dynamic PINs, and 100 fingerprint users.

It is fully compatible with TTlock SaaS platform:TTLOCK/ TTRenting/TTHOTEL, which makes it suitable for a wide range of application scenarios, Airbnb, Home, School, Office, etc., and can be easily managed through the APP/platform.

It runs on AA batteries (requires 4), lasting over 6 months with normal use (bases on 30 times/day). and it willremind people to replace batteries intelligently if battery is low.




BluetoothBLE Bluetooth (BLE 5.0)
Mobile PhoneAndroid 4.3/IOS 7.0 above
Door Thickness35~50mm
Mortise Type60/70 adjustable deadbolt mortise
PIN User Capacity

Permanent & Custom password: 250

Other dynamic password: no limitation

Card User Capacity1000
Card Type13.56MHz Mifare card, M1 card
Fingerprint User Capacity100
Local Storage Log2000 (Including door opening records)
Operating Voltage4 Units AAAlkaline Batteries
Low Battery Alarm Voltage4.8V±0.1
Voltage Range4.5V~9V
Idle Current90uA
Working Current<200mA
Unlock TimeAbout 1.5 Seconds
Operating Temperature-20°C~+60°C
Operating Humidity10%RH95%RH
MaterialAluminum, ABS, Acrylic
ColorBlack Nickel / Satin Nickel
