XK2-Ble+WIFI

TTLock WiFi Enabled Mechanical Keypad

> Waterproof, conforms to IP67
> Metal housing, anti-vandal
> Card type:  13.56MHz Mifare Card, DESFire EV1, DESFire EV2
> Add / Delete users by APP
> Support checking Opening Record
> Support Time Attendance
> Multiple Access Modes: Smartphone, Card, PIN, Remote Key (optional)
> Multiple languages
> Bluetooth + WIFI version or Bluetooth only version

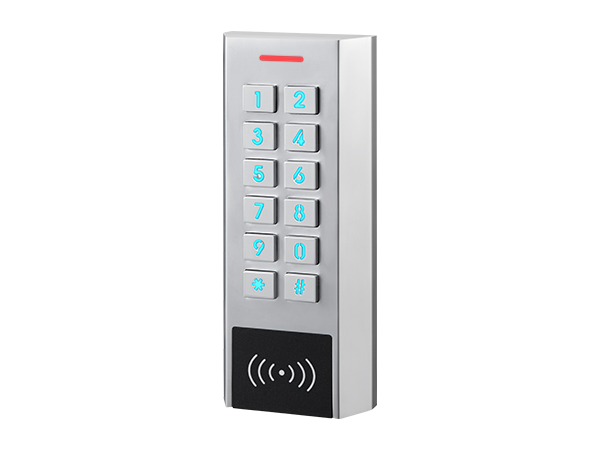

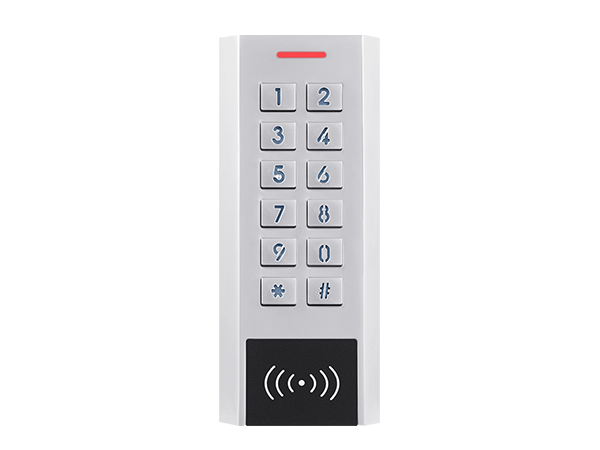

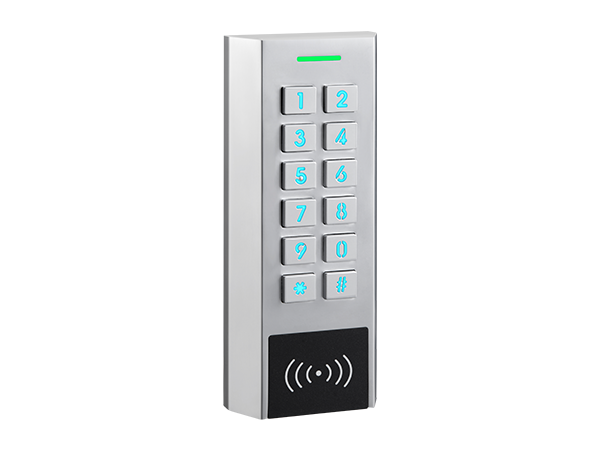

The XK2-Ble+WIFI is a WiFi-enabled waterproof mechanical keypad + RFID access controller.

It's integrated with TTLock APP which supports to Add / Delete PIN / Card user and sending eKeys.

It's available for both iOS and Android, supporting multiple languages.


BlutoothBLE Bluetooth (BLE 4.2), WIFI (2.4G)
Mobile PhoneAndroid 4.3/IOS7.0 above
PIN User CapacityCustom password: 250
dynamic password: No limitation
Card User Capacity1000
Card Type13.56MHz Mifare card, M1 card, DESFire EV1, DESFire EV2
Multi-languageEnglish, Spanish, French, German, Italian, Russian, Portuguese,
Serbian, Malaysian, Japanese, Vietnamese etc.
Card Reading Distance2~4 cm
Operating Voltage12-24V DC
Working Current≤80mA
Lock Output Load≤2A
Operating Temperature-20°C~+60°C
Operating Humidity0%RH~85%RH
For OutdoorWaterproof, IP67

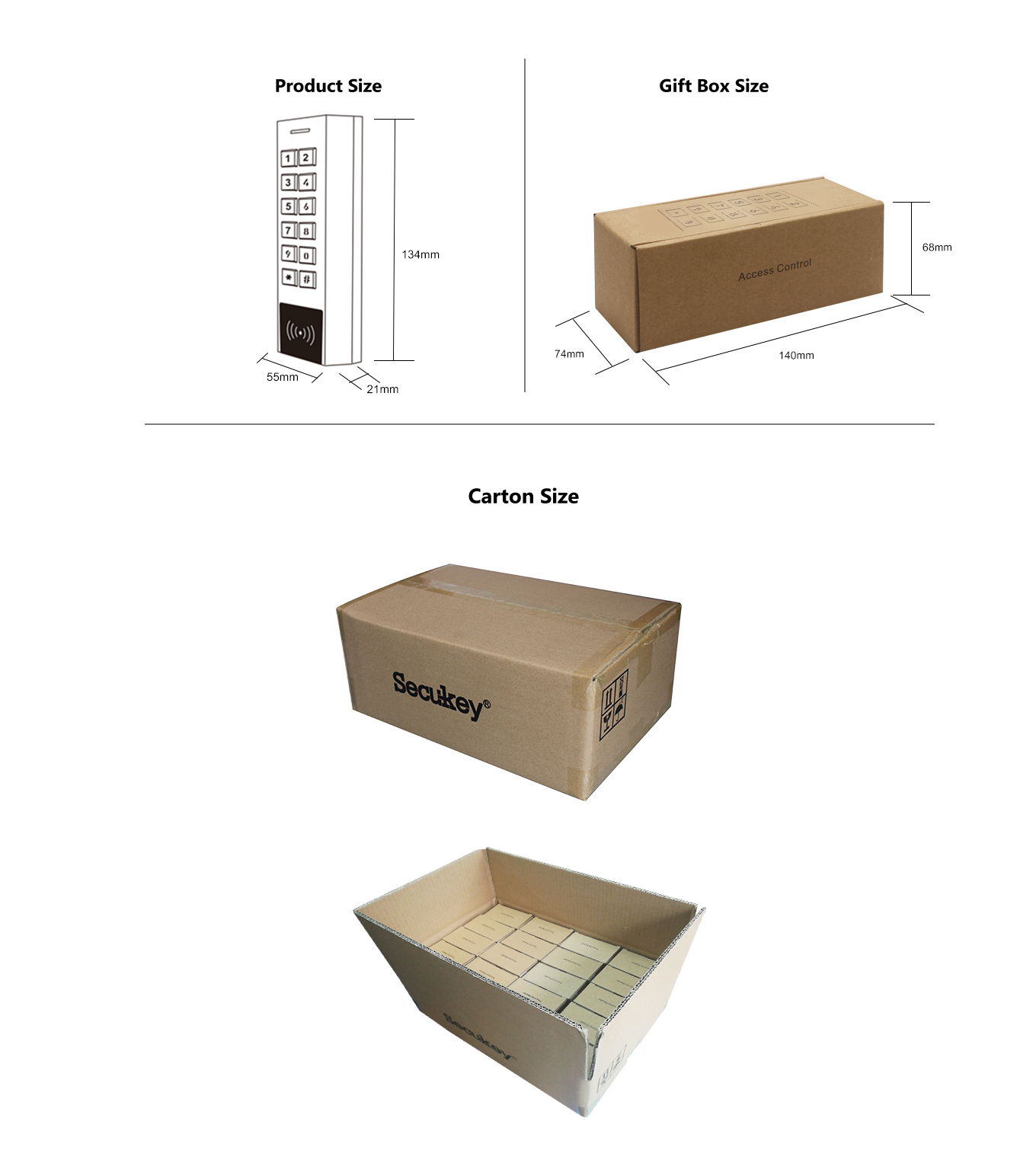

Physical
Colour
Dimensions
Unit Weight
Shipping Weight
Zinc-Alloy
Silver & Black
L134 X W55 X D21 (mm)
500g
615g
