 E2-Ble

TTLock Embedded RFID Access

> Waterproof, conforms to IP67

> Metal housing, anti-vandal

> Card type: 13.56MHz Mifare Card, DESFire EV1, DESFire EV2

> iOS and Android available

> Add / Delete users by APP

> Support checking Opening Record

> Support Gateway

> Support Time Attendance

> Multiple Access Modes: Smartphone, Card

> Multiple languages

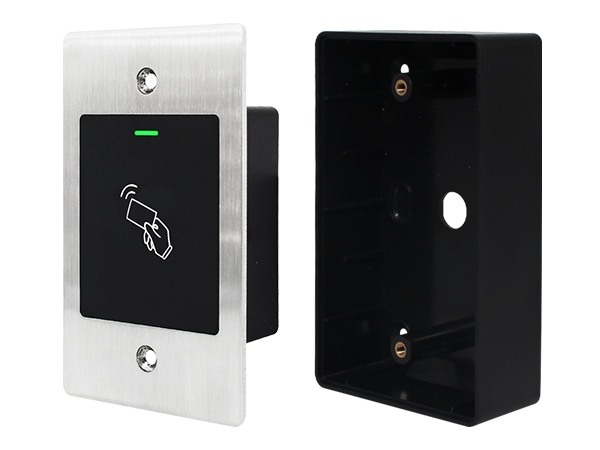

The device is the latest TTLock Embedded Access Control with Bluetooth compatibility, supporting flush and surface mounting.

Featuring a stainless steel plate design & waterproof, it offers multiple unlocking methods, including IC card and smartphone access.

With TTLock user management, like adding/deleting users and sending eKeys, it works with both iOS and Android in multiple languages.


BlutoothBLE Bluetooth (BLE 4.1)
Mobile PhoneAndroid 4.3/iOS 7.0 above
Card User Capacity1000
Card Type13.56MHz Mifare card, M1 card, DESFire EV1, DESFire EV2
Multi-languageEnglish, Spanish, French, German, Italian, Russian, Portuguese,
Serbian, Malaysian, Japanese, Vietnamese, etc.
Card Reading Distance2~4 cm
Operating Voltage12V DC
Working Current≤80mA
Lock Output Load≤2A
Operating Temperature-20°C~+60°C
Operating Humidity0%RH~85%RH
For OutdoorWaterproof, IP67

Physical

Colour

Dimensions

Unit Weight

Shipping Weight

Stainless Steel Plate

Silver & Black

115x70x25mm

250g

350g
