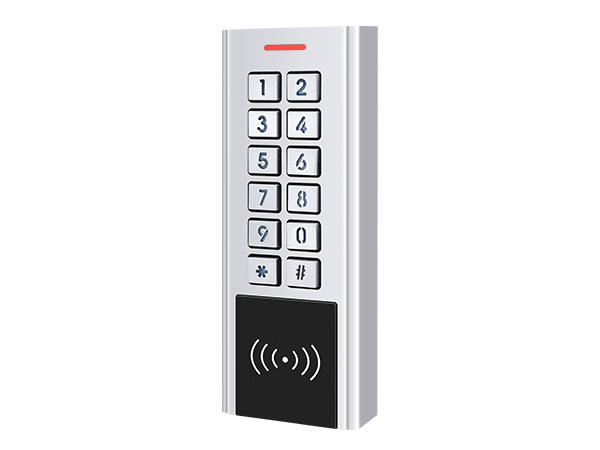

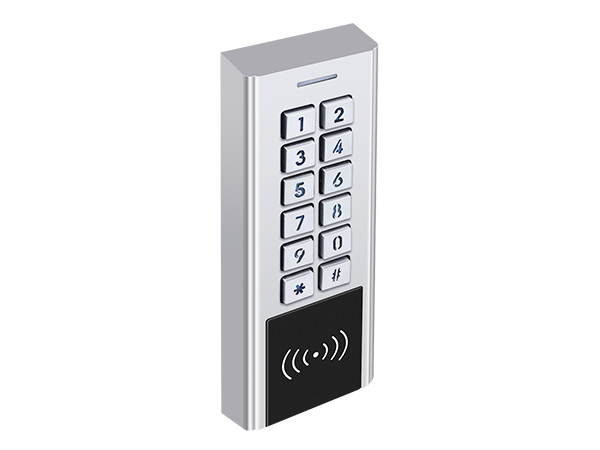

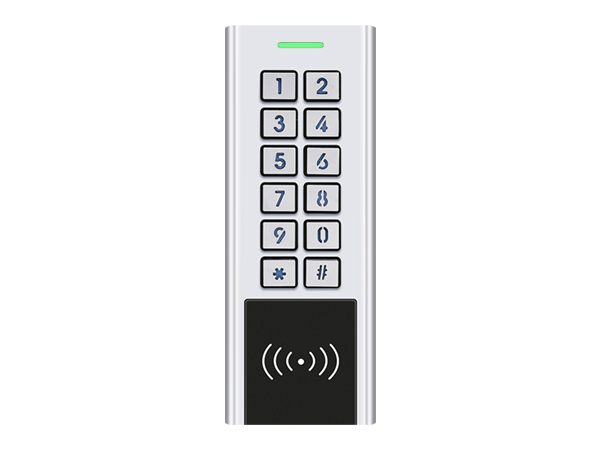

XK10-WIFI

WIFI Keypad & RFID Access

> Add / Delete users by APP
> Can set Time Restriction for users
> Temporary Password (One-time Or Period Code)
> Door Keep Open Mode
> Support checking Opening Record
> Remotely Access (Support 3G/4G/5G)
> Multiple Access Modes: Smartphone, Card, PIN
> Doorbell Call Notice
> Metal case, anti-vandal
> Waterproof, conforms to IP66
> One relay, 10000 users (9988 common users + 2 panic users +10 visitor users)
> Card Type: EM+HID+Mifare Card


XK10-WIFI can read EM+HID+Mifare cards and is a mechanical keyboard, WiFi, waterproof keypad & RFID access controller.

It's integrated with Tuya, which supports 500 mobile users and 10,000 card/ PIN users. It's available for both iOS and Android.

It supports a voltage of 12~80V DC /12~55V AC, making it suitable for various power environments.

User Capacity

Common User
Visitor User
Panic User

10,000

9988

10
2

PIN Length

4~6 digits

Operating Voltage

Idle Current
Active Current

12~80V DC / 12~55V AC

≤ 60mA
≤ 150mA

Proximity Card Reader

Radio Technology

Read Range

EM+HID+Mifare

125KHz & 13.56MHz

2~6cm

Wiring Connections

Relay output, exit button, alarm, door contact, Wiegand input/output

Relay

Adjustable Relay Output Time

Lock Output Load

One (NO, NC, Common)

0~99 Seconds (5 seconds default)

2 Amp Maximum

Wiegand Interface

PIN Output

EM card: Wiegand 26~44 bits input & output.

Mifare card: Wiegand 26~44bits 56bits, 58bits input & output.

4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)

Environment

Operating Temperature

Operating Humidity

Meets IP67

-40°C ~ 60°C (-40°F ~ 140°F)

0%RH ~ 98%RH

Physical

Color

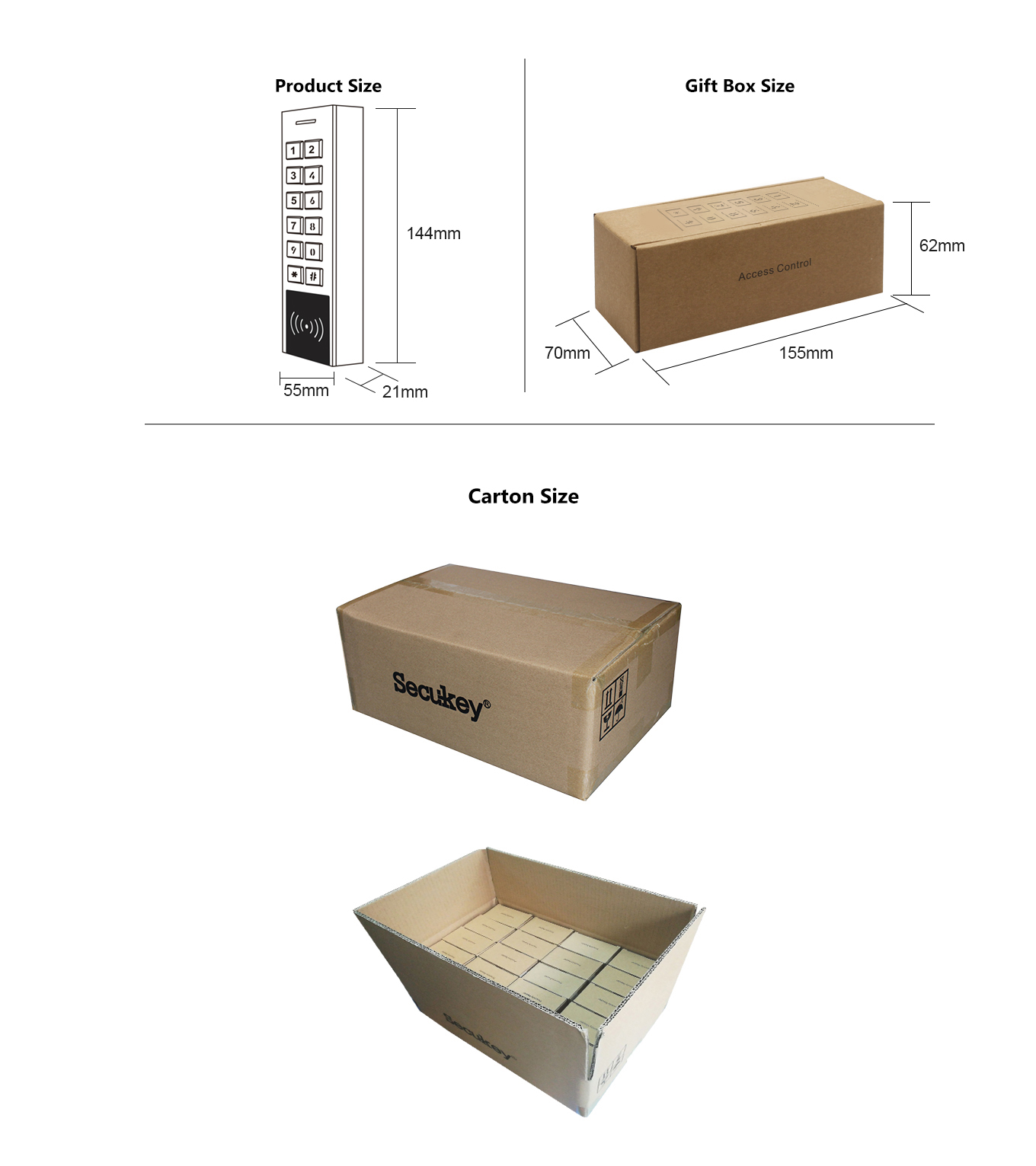

Dimensions

Unit Weight

Shipping Weight

Zinc-Alloy

Silver & Black

L144 x W55 x H21 (mm)

400g

480g


XK-WIFI User Manual.zip
